DESCRIPTION

The Tentacle SYNC E Standard Set is a complete hardware/software solution offering timecode synchronization over Bluetooth. The SYNC E is a user-friendly timecode generator housed in a super small enclosure. The Tentacle SYNC E Standard Set also includes the renowned Tentacle Sync Studio Software for macOS. For fast and easy syncing of your audio and video material. The Tentacle SYNC E is the perfect workflow solution for any video shooting from YouTube and Wedding applications to Multicam setups as well as post production syncing tasks.

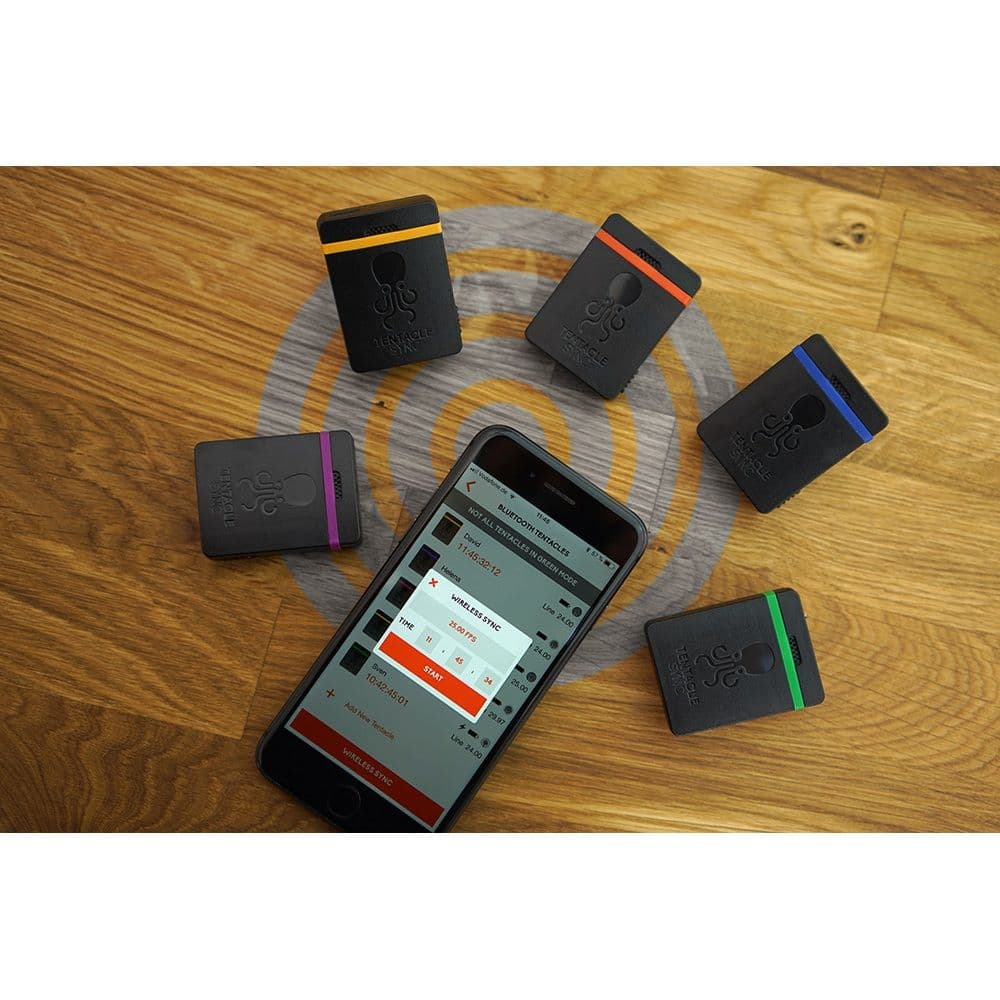

The Tentacle SYNC E is based on the original Tentacle Sync device. It now offers syncing over Bluetooth Low Energy (Bluetooth LE), which makes setting up and monitoring all your Tentacle units even easier – you only need an iOS or Android device. Check with frame accuracy how well your units are syncing. Connect your Tentacles to nearly ans kind of camera or audio recorder – from a DSLR to high-profile cameras such as the ARRI Alexa. Since the timecode is transmitted via 3.5mm mini jack, no bulky jacks or adapters are needed for connecting your equipment.

FEATURES

• Syncing over Bluetooth 4.2 (Low Energy) for monitoring and setup via phone or tablet
• Super small and lightweight

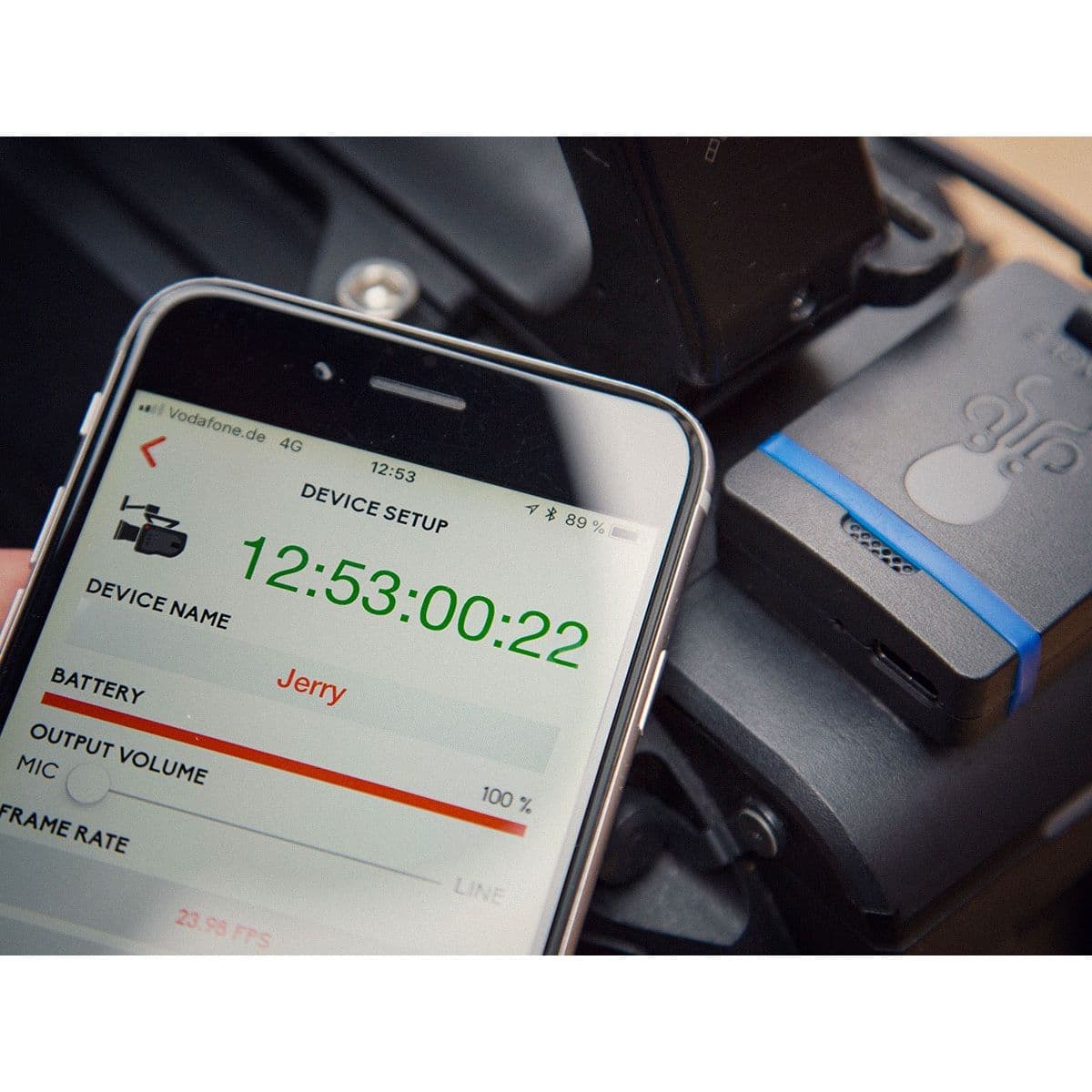

• Frame rate and TC output level adjustable via Tentacle Setup App (iOS/ Android/ macOS/ Windows)
• Two Tentacle Sync Studio Software Licenses included

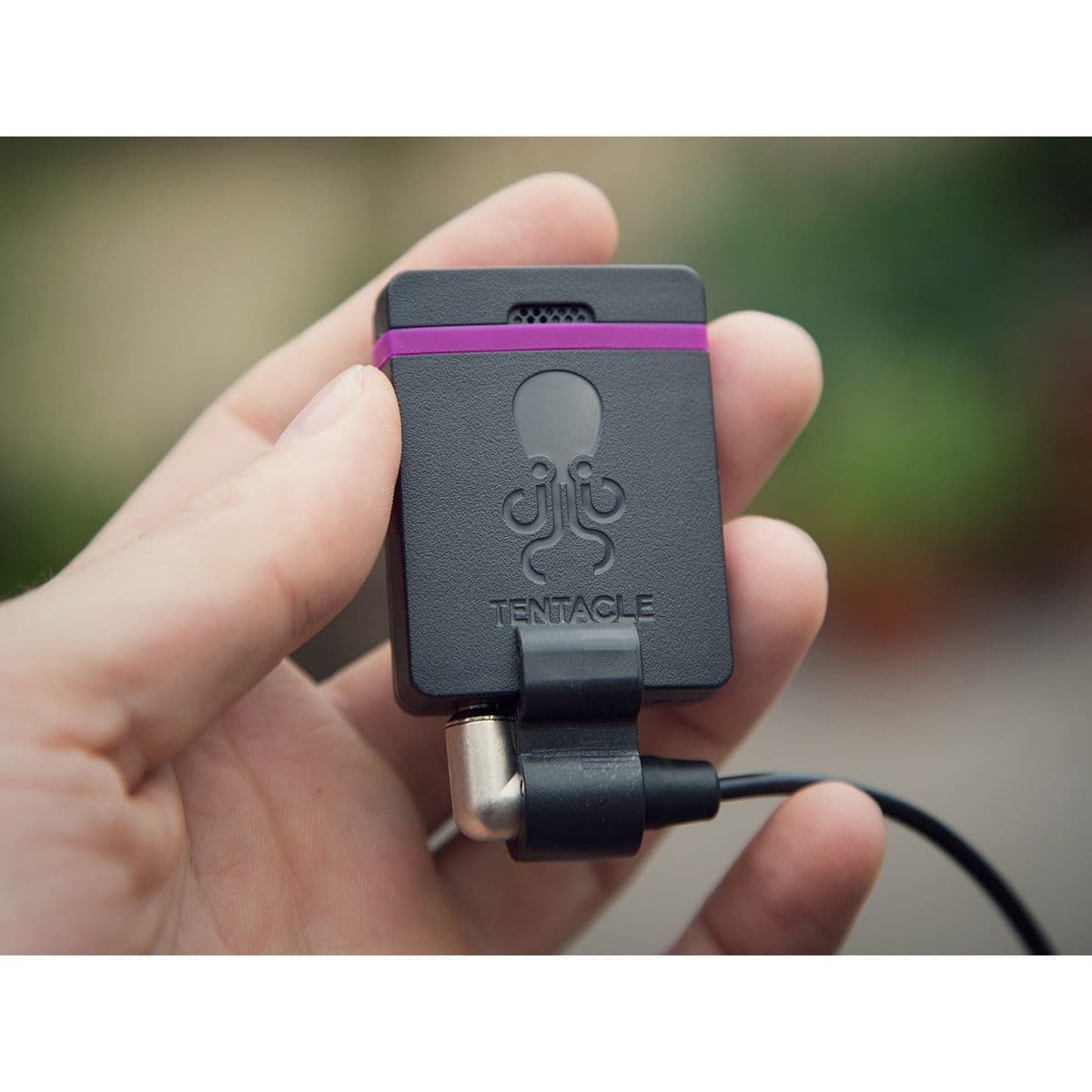

• Tentacle Clamp locks a right-angle mini jack connector
• Accurate built-in reference microphone
• Generates All SMPTE timecode rates or jam-sync to any external timecode source
• High precision TCXO: accuracy with less than 1 frame drift in 24 hours (-30°C to +85°C)
• Designed and made with love in Cologne, Germany

SPECS

LTC Timecode: According to SMPTE-12M Standard

Drift: High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)

Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30

Timecode I/O: Mini Jack Socket

Audio: Built-In Reference Mic

Power: Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)

Mounting: Integrated Hook Surface on the Back for Easy Mounting

Weight: 30 g / 1 oz

Dimensions: 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches

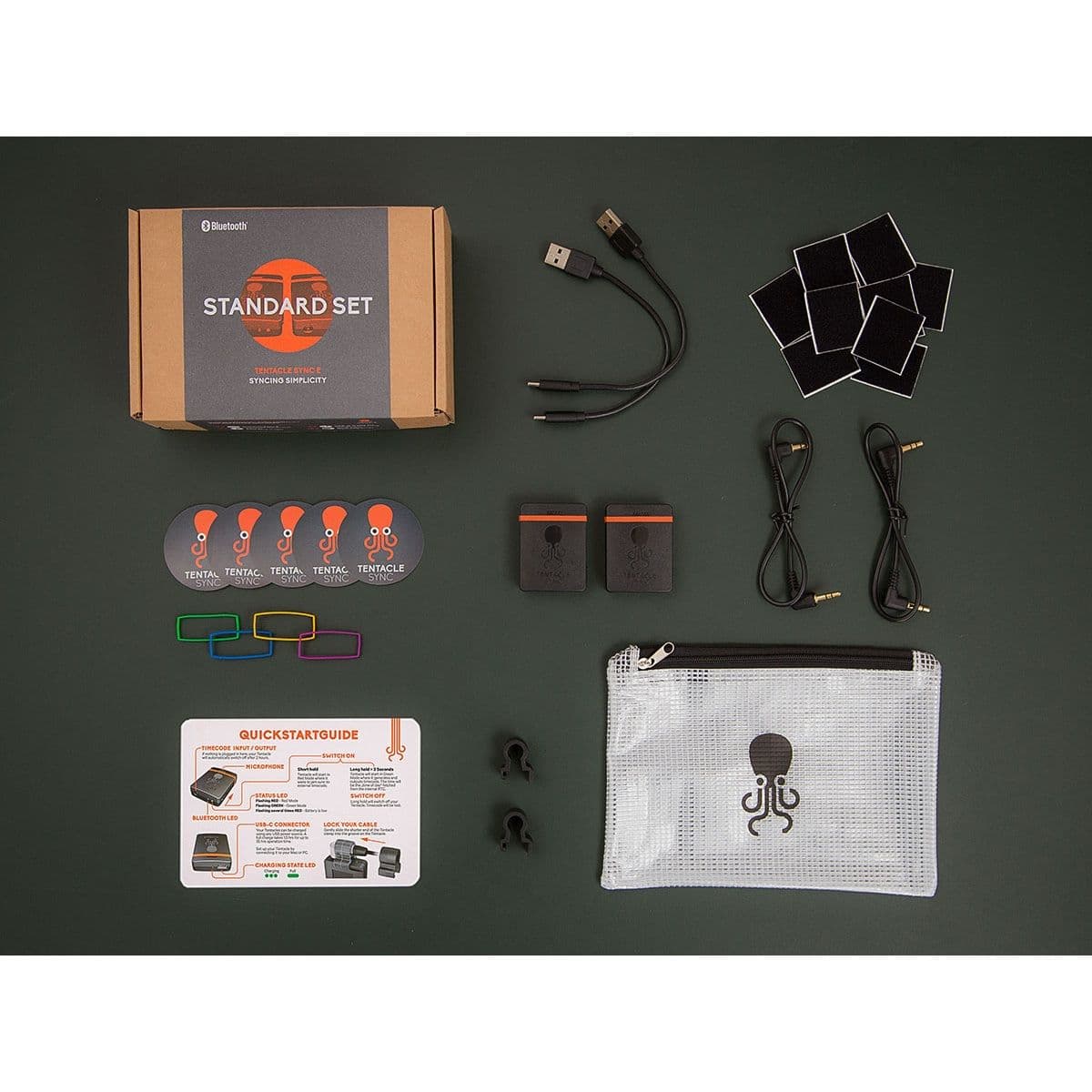

WHAT’S IN THE BOX?

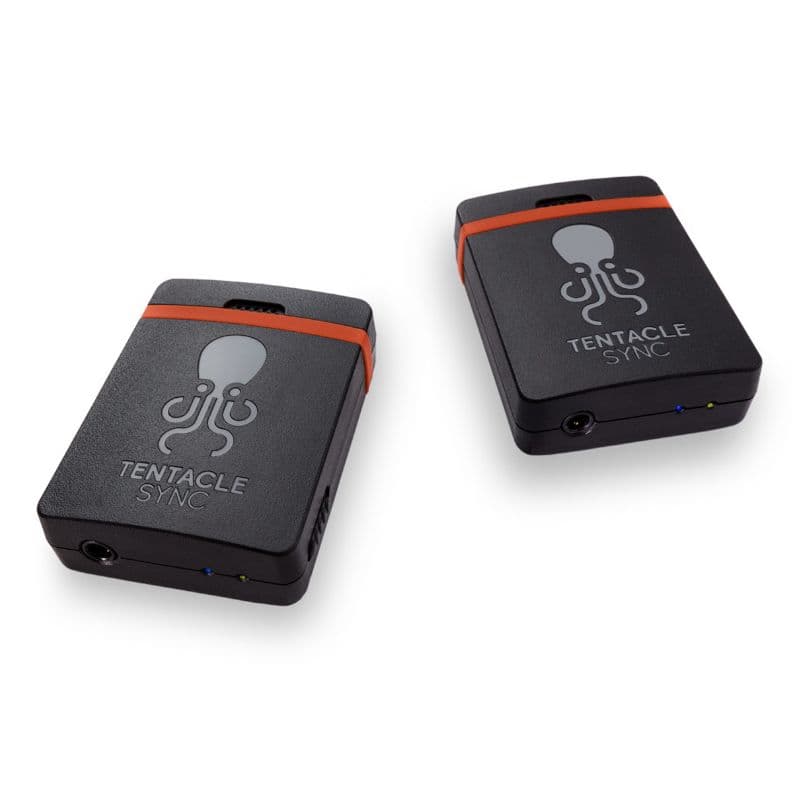

• 2x Tentacle Sync E – Timecode Generator with Bluetooth™ Functionality
• 2x Mini-Jack-Cable (90° angled) for Syncing Cameras with TRS input (5D, BMPCC, GH4 …)
• 2x USB-C Cable for Charging and Setup (Win/Mac)

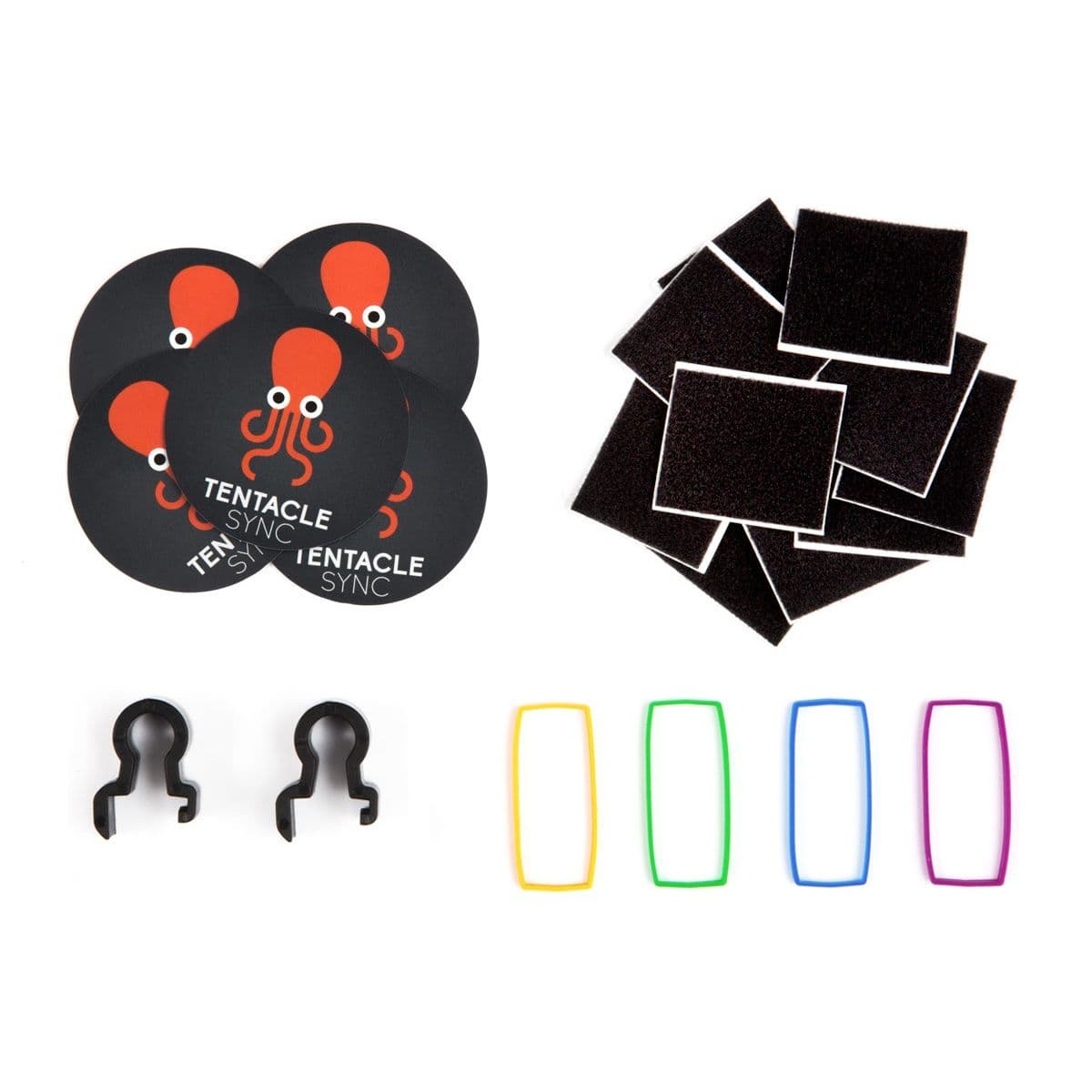

• 2x Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E
• 10x Velcro Loop Pads for Mounting the Tentacle to any Device
• 4x Coloured Rubber Bands
• 1x Quickstart Guide
• 1x Software Activation Details and Manual included
